Couplings


Claw Coupling

European | American | Universal claw couplings types



Materials Available In


ASIS 304 316 304L
316 L Brass Carbon Steel
Forged A105






Data Sheet

Applications


Coupling Types


Female Thread Male Thread Hose Shank
Socket Weld

Gaskets


PTFE Silicon Nitrile
EPDM Natural Rubber Viton

Key Features


  • Claw couplings have two lugs  located in the locking head that can be quickly connected to existing claw or ‘q’ type units
  • Distance between lugs: European – 42 mm | American – 41 mm
  • All KFI Claw couplings are available in forged or casting manufacturing process.
  • Most suitable for compressed air applications.
  • KFI standard range of Claw Couplings come with an oil resistant Nitrile Seal.
  • Double lock safety feature. Simple cross connection regardless of size or hose.
  • Special pin lock features.

Types of Claw Couplings

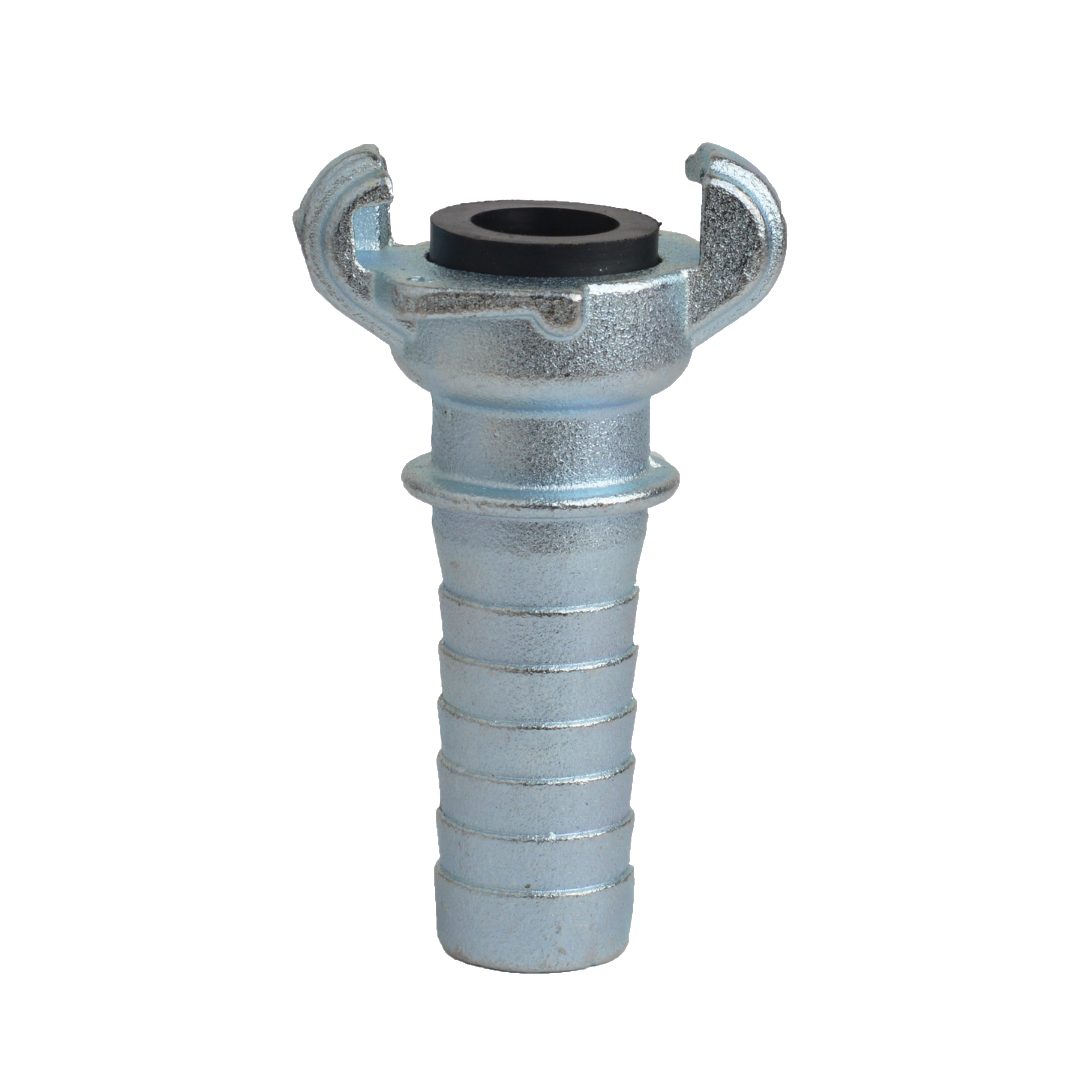

Hose Shank

Female Thread

Male Thread

Couplings


Claw Coupling

European claw couplings are manufactured in accordance to DIN 3489

Materials Available In


ASIS 304 316 304L
316 L Brass Carbon Steel
Forged A105



Data Sheet

Applications


End Connections


Female Thread Male Thread Hose Shank
Socket Weld

Gaskets


PTFE Silicon Nitrile
EPDM Natural Rubber Viton

Key Features


  • Distance between lugs: 41mm
  • All KFI Claw couplings are available in forged and casting manufacturing process.
  • Suitable for compressed air applications.
  • Our standard range of Claw Couplings come with an oil resistant Nitrile Seal.
  • Double lock safety feature. Simple cross connection regardless of size or hose.
  • Special pin lock features.

Types of Claw Couplings


Hose Shank

Female Thread

Male Thread
